Set interphonie HF 10 postes, fréq 1,9Ghz, 3 antennes actives, 1 splitter

Descriptions détaillées

FreeSpeak II
FreeSpeak II™ is the next generation distributed wireless solution that operates in multiple world-wide license-free frequency bands: 1.897-1.933GHz and 2.4GHz. This high performance wireless intercom system is designed for extensive communication in large-scale operations. Its ability to maintain a strong and continuous wireless connection across an expansive coverage area while providing crystal-clear digital audio makes FreeSpeak II the ideal wireless roaming solution for live event, broadcast, sport production, industrial, military and government applications.

FreeSpeak II-Base-II
The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate a mix of up to 25 1.9GHz and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel.The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.

Key Features and Benefits:
  • Routing and configuration of up to 25 FSII beltpacks
  • Browser-based configuration tool
  • Four 2-wire ports with call signal, auto-nulling
  • Four 4-wire ports with call signal
  • One dry contact relays
  • Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
  • Dedicated front panel keys for remote mic kill, stage announce and all talk
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Matrix and partyline configurations support up to 12 channels and/or groups
  • Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
  • No. of Beltpacks per Base Station: 25
  • No. of Transceiver/ Antennas Supported by Base: 10
  • No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
  • PC Programming Port: 2 LAN RJ45
  • Relay Port: DB15, supports 1 set of relays and 2 GPI
  • Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
  • Partyline Power On/Off: A/B, C/D paired
  • Partyline Output Voltage: 26 - 28VDC, 850mA per pair (A/B or C/D)
  • Four-Wire/Matrix Connection: 4 RJ-45
  • Program Input: XLR-3F, transformer isolated, line-level input
  • Stage Announce Output: XLR-3M, transformer isolated, line-level output
  • Front Panel Headset: 4-pin male and 5-pin female options
  • Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
  • Front Panel Indicators: Antenna Status, Beltpack Status
  • External Power Supply Connection: 12VDC
  • Base Station Programming/Editing: Push-to-enter rotary encoder

FreeSpeak II 1.9GHz Beltpack
The five-channel, full-duplex FreeSpeak II digital beltpack was uniquely designed for the rigorous demands
of large-scale operations and continuous communication use. Ergonomic form factor, intuitive operation, and a rugged housing make the beltpack ideal for extended use. This beltpack operates in the 1.88 - 1.93GHz frequency band.

  • Up to five communication routes per beltpack, each with a 5 or 10 character label
  • Four programmable pushbuttons, two rotary encoders and a reply button
  • Menu driven display, which can be partially or completely restricted
  • Secure system – beltpacks are registered to a particular base station or Matrix
  • Internal antenna – no antenna breakage or damage
  • Long battery usage – typically 18 hours of continuous talk time
  • Two battery options – rechargeable Li-Ion cells or disposable Alkaline AA Batteries
  • Drop-in charging port with built-in USB battery and beltpack charging capability
  • Strong metallic beltclip and shoulder strap points
  • Over-the-air beltpack easy registration and regionalization
  • Real-time monitoring of battery per beltpack
  • “Listen Again” audio memory to replay last 15 seconds of audio
  • Technician’s flash light on rear
Technical Specifications
  • Audio Bandwidth: 200 Hz - 7.5KHz (G.722)
  • No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 pairs), 2 controls and a main volume
  • Mode of Operation: Full duplex on all routes
  • Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
  • Enter / Answer-Back Button: 1
  • Frequency Spectrum: 1.88GHz – 1.93GHz DECT Cellular auto roaming technology
  • Range: Up to 1475ft (450m) in good radio frequency conditions, 800 feet typical
  • Battery: Li-Ion or 3 AA alkaline cells
  • Battery Charging: Drop-in charger (AC60) or local USB
  • Battery Life: 18+ hours with Li-ion; 6 hours with 3 x Alkaline AA cells
  • Headset Connector: 4-pin male, Clear-Com standard
  • Microphone Type: Electret and Dynamic, selectable in beltpack menu
  • Microphone Level and Headset Limiter: Selectable in beltpack menu
  • Headset Limiter: Selectable from beltpack menu
  • Environmental: IP-65 water and dust resistance; -67-degrees F to +158-degrees F (-55-degrees C to +70-degrees C)
*Japan: 8mW average
**Exact frequency range depends upon country, and is preset e.g. Transceiver for Japan: 1.893GHz-1.906GHz.

FreeSpeak II 1.9GHz Active Transceiver Antenna
1.89GHz-1.93GHz* Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 5 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area. Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.

  • Up to 10 Active Antennas can be connected to one system
  • Up to 1,475 ft of coverage area per antenna
  • 1.9GHz and 2.4GHz antennas can co-operate on the same system
  • IP65 rated for water and dust resistance
  • Microphone stand mounting
* exact frequency range depends upon country where approved
  • Frequency Spectrum: 1.88-1.93MHz for EU and US Cellular auto roaming technology
  • Modulation: GFSK, TDMA frame 10ms Full and Long slot
  • Output power (EU): 18-22dBm, (US): 18-20dBm
  • Operating: 32º-125ºF (0º-50ºC) Storage: 32º-150ºF (0º-70ºC)
  • Humidity: Between 20% and 90%, Non-Condensing

FreeSpeak II Splitter
The FSII-SPL is an antenna splitter that connects multiple FreeSpeak II transciever antennas to an Eclipse-HX matrix (via an E-QUE-HX frame card) or to a FreeSpeak II base station. The splitter provides up to 5 antenna feeds from one antenna port. An SFP fiber slot allows a fiber link between a FSII-BASE-II base station and splitter (base-to-splitter) or it can be used as a fiber bridge on legacy FreeSpeak II base stations and Eclipse HX matrix frames (splitter-to-splitter).

Key Features:
  • Provides up to 5 FSII transceiver antenna feeds on one antenna port on a FSII-BASE-II base station or E-QUE-HX frame card
  • SFP fiber slot for fiber link to FSII-BASE-II or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
  • Supports both multi-mode and single-mode fiber
  • Configure settings using DIP switches
  • IP-63 water resistance for outdoor use
  • LED status indicator on front and back
  • Mic stand, rackmount or wall mount orientation (metric and imperial threads)
  • Transceiver Antenna: 5 Ethercon RJ-45, each with yellow LED indicators on front and back
  • Matrix: 1 Ethercon RJ-45, with yellow LED indicator on front and back
  • Fiber: 1 SFP port
  • Splitter: Requires external power supply (included)
  • Transceiver Antenna: Provides power to antennas via RJ-45 connections
  • IP-63 water resistance for outdoor use
  • +32°F to +122°F
  • (0°C to +50°C)

FreeSpeak II Antenna Splitter
The Antenna Splitter box provides 5 Antenna feeds from one antenna port on the FreeSpeak II base station or E-Que-HX card. Comes with PSU.

Technical Specifications
  • No. of Antennas: 5
  • No. of Splitters Per Base: 2
  • Connection Between Base and Splitter: CAT-5 or better cable with RJ-45
  • Connection Between Splitter and Antennas: CAT-5 or better cable with RJ-45
  • Powering of Splitter: Locally powered via supplied external power supply

AC60 Battery Charger
2-in-one, 5-way battery and beltpack charger for the FreeSpeak II system

BAT60 Battery
FreeSpeak II Lithium-Ion Battery for FreeSpeak II 1.9GHz and 2.4GHz beltpacks.

Ce matériel en situation

Défilé Zuhair Murad | Fashion Week Paris | Janvier 2019

Mercredi 23 janvier, la maison Zuhair Murad nous a dévoilé sa collection haute couture printemps-été 2019 lors de la Paris Fashion Week.Dans des tons bleus-noirs et des...

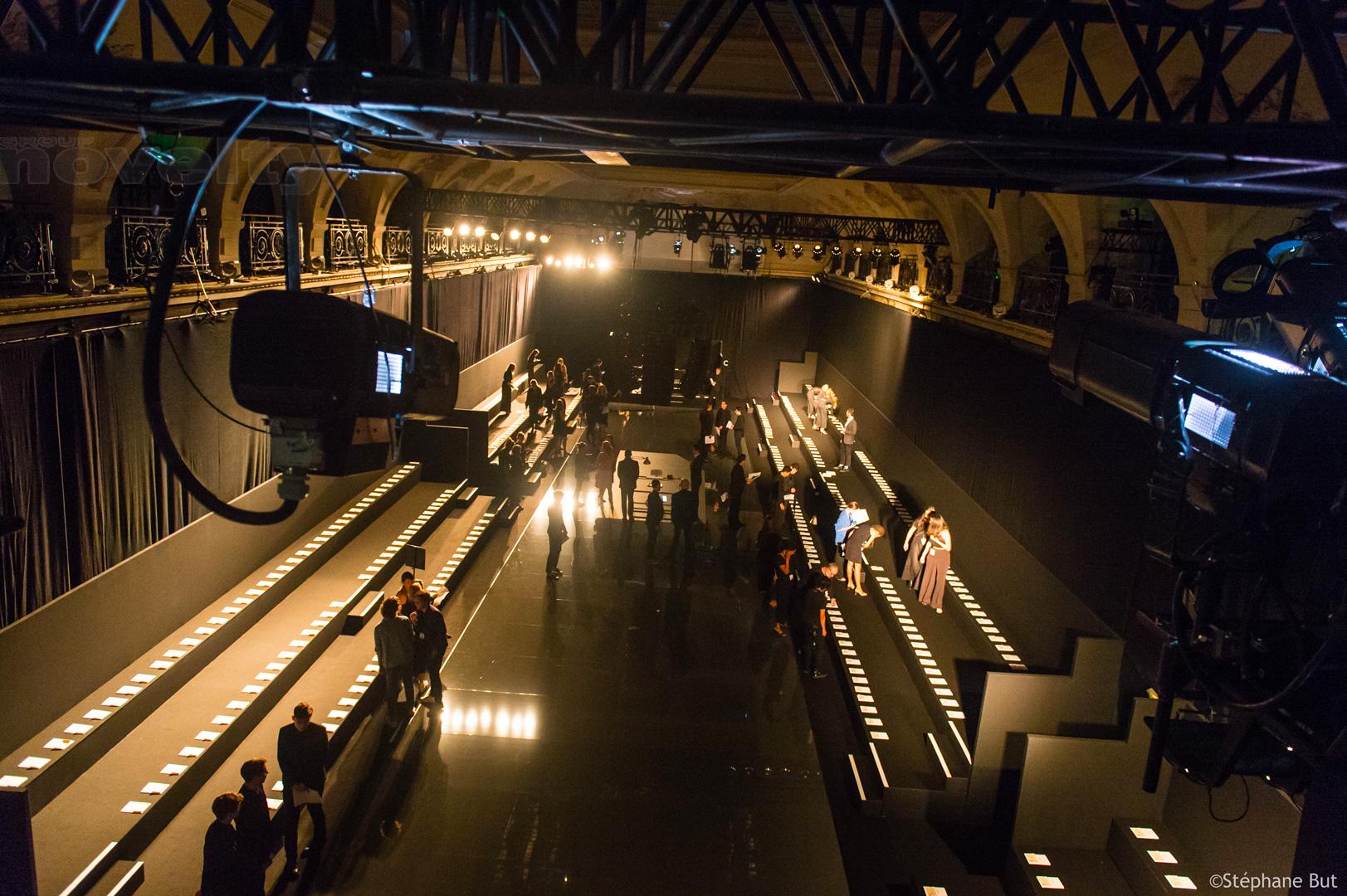

Défilé Schiaparelli | Fashion Week Paris | Juillet 2019

SCHIAPARELLI, c'était le défilé à suivre sur les podiums parisiens ce 1er juillet 2019!Ce défilé a marqué le passage à une...

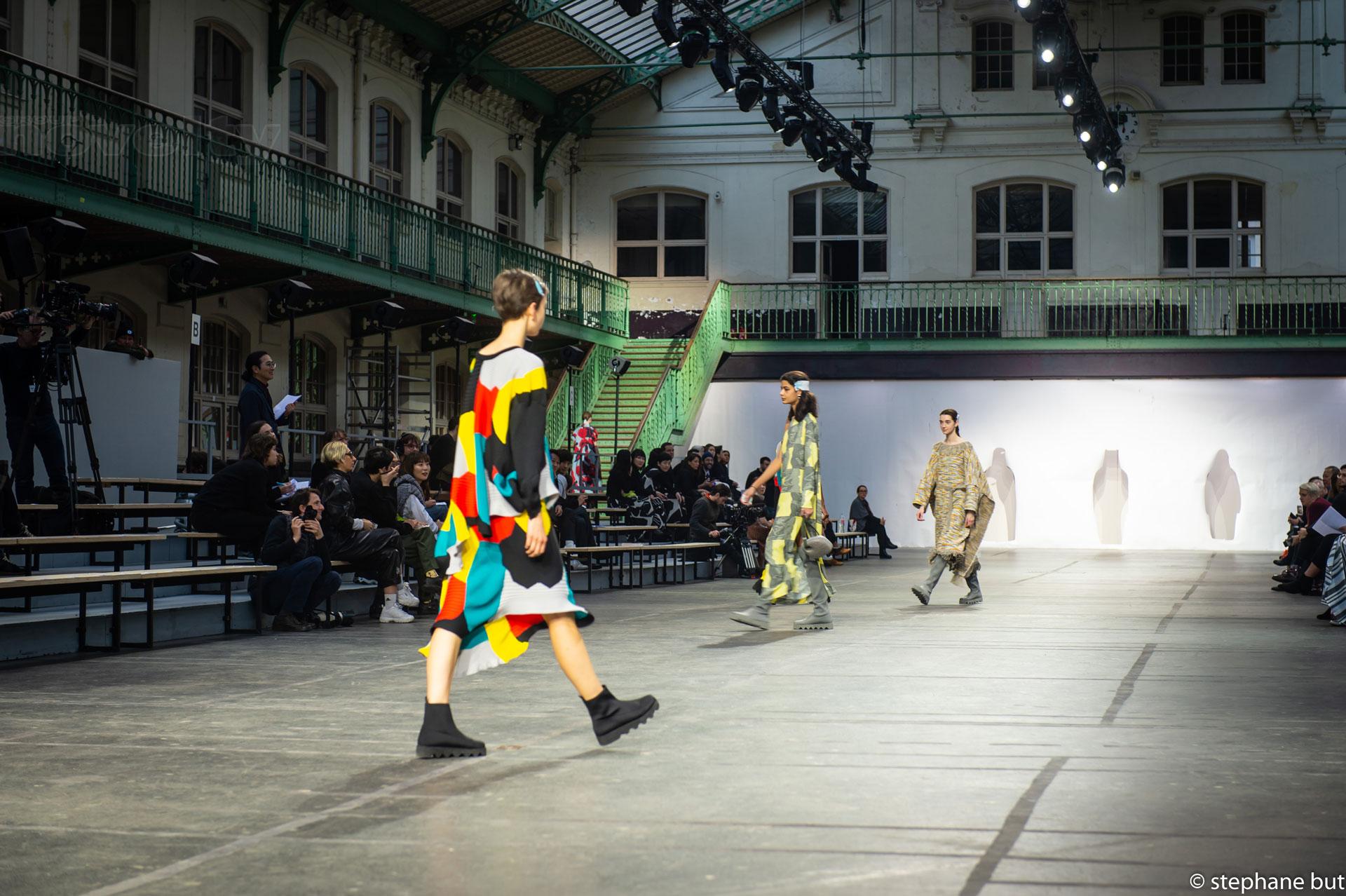

Défilé Issey Miyake | Fashion Week Paris | Février 2020

"Sommes-nous liés au-delà des langues et des cultures par les émotions que nous partageons ?", s'interroge la maison Issey Miyake dans une note d'intention du...

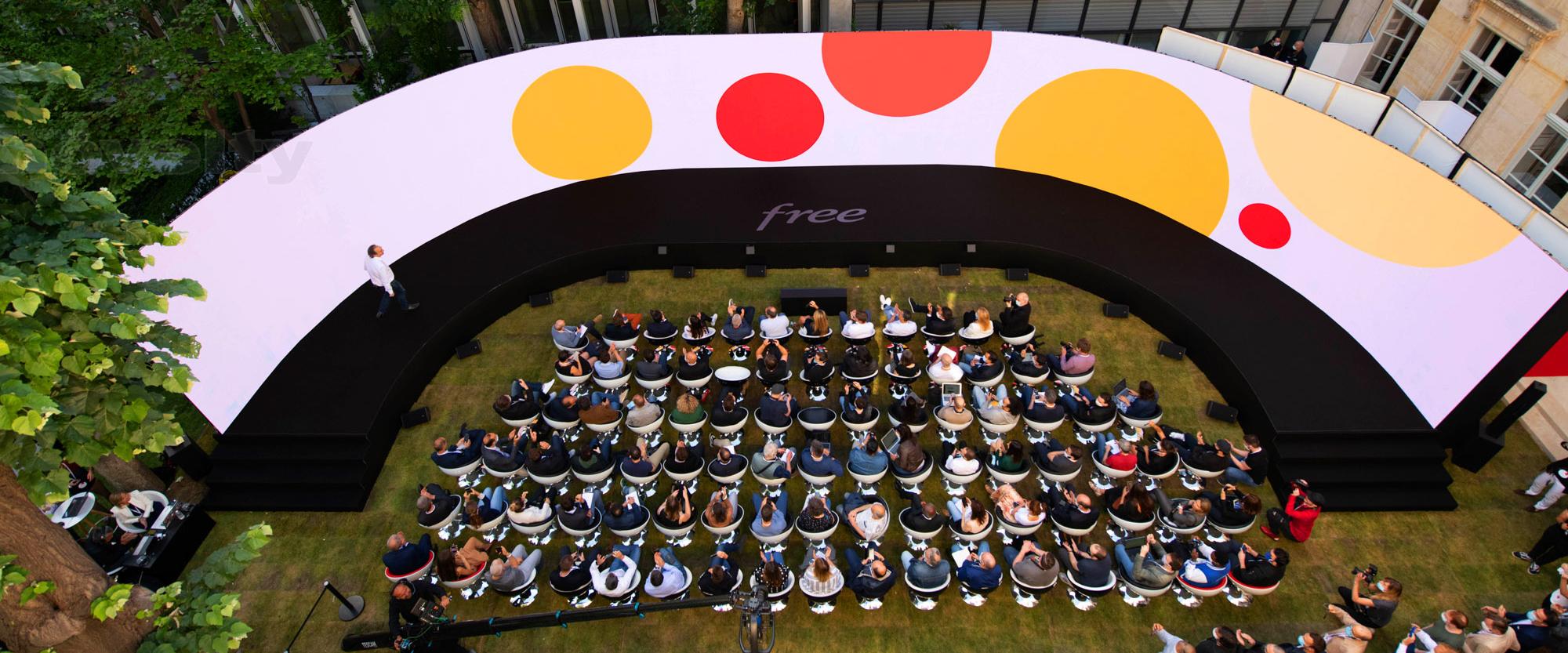

NOVELTY est fier d'avoir accompagné la Conférence de presse Freebox Pop

Conférence de presse Freebox Pop du 7 juilletAgence Kailash Stephan CorreaCoordination de Production : Aline BricheScénographie : Jean Paul Haure Direction Technique : Vianney...

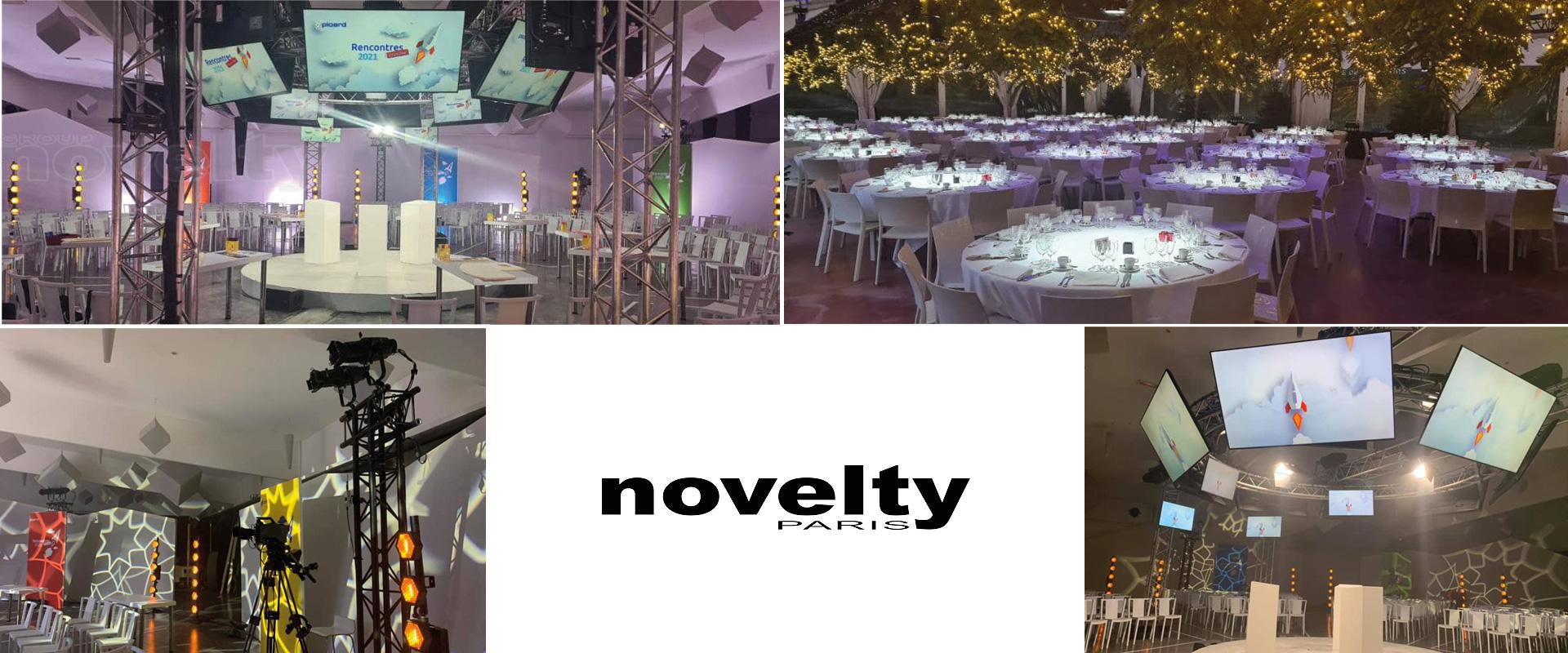

Novelty Paris aux Rencontres Picard 2021

Novelty Paris était au Business Village près de Provins pour les Rencontres 2021 de Picard pour équiper une salle plénière avec :- La vidéo comprenant une...

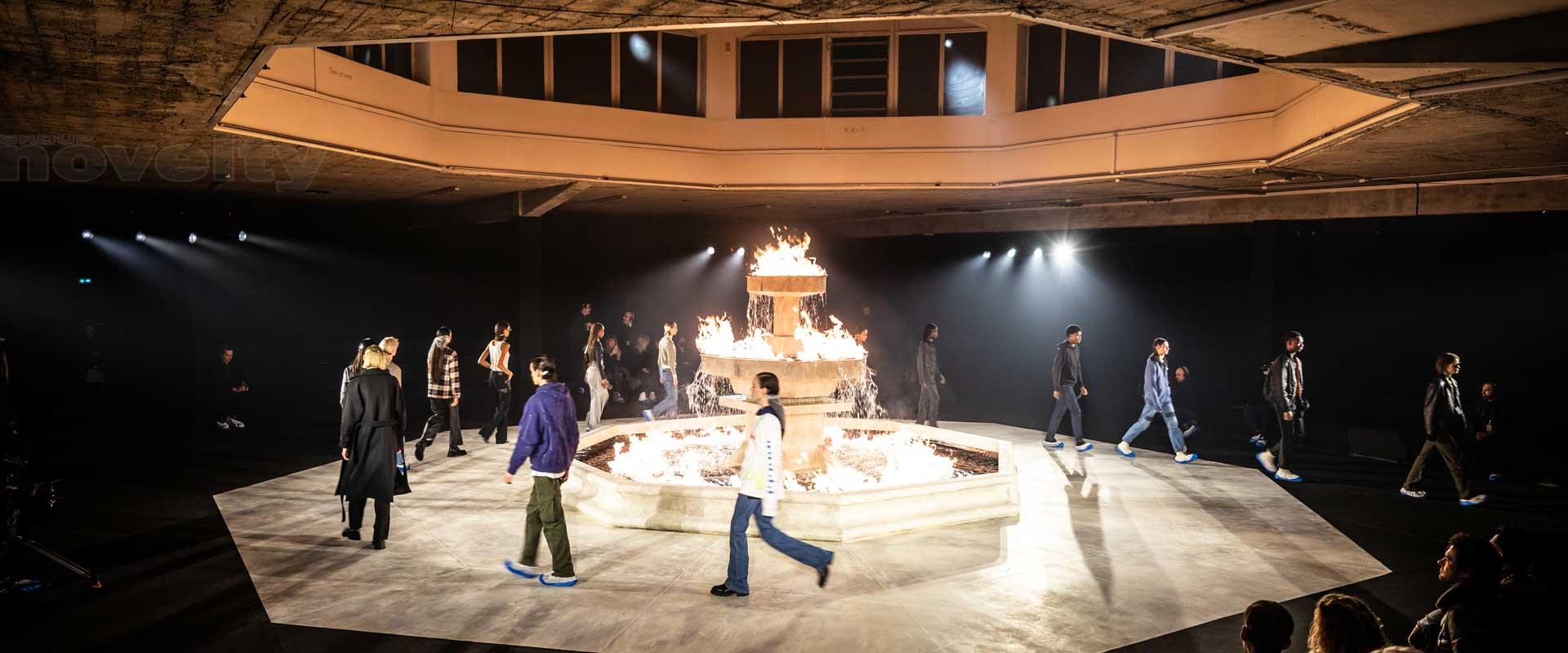

Paris Fashion Week | ZADIG & VOLTAIRE | Janvier 2023
